SKY59608-711LF

Sky5® 2.4 to 8.3 GHz SPDT Switch

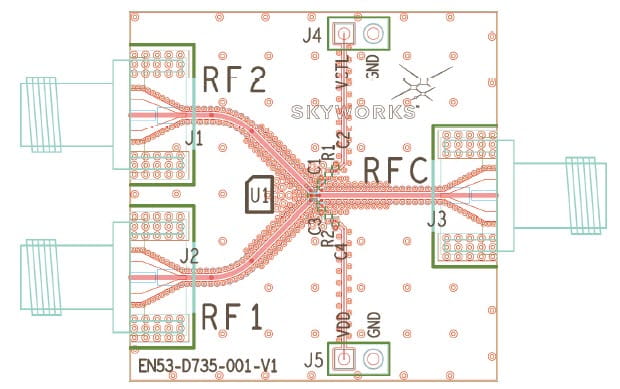

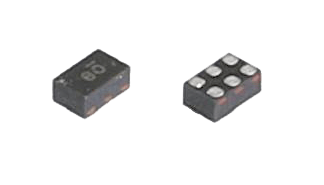

The SKY59608-711LF is a single-pole, double-throw (SPDT) switch intended for mode switching in WLAN applications. Using advanced switching technologies, the SKY59608-711LF maintains low insertion loss and high isolation for all switching paths. The SKY59608-711LF is part of our Sky5® product portfolio.

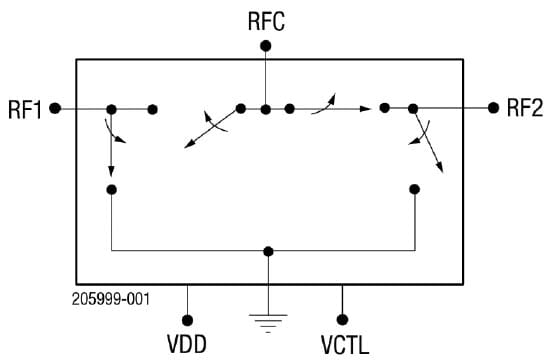

The high-linearity performance and low insertion loss achieved by the switch make it an ideal choice for low-power transmit/receive applications. Depending on the logic voltage applied to the control pin (VCTL), the RFC pin is connected to one of the two switched RF outputs (RF1 or RF2) using a low insertion loss path, while the path between the RFC pin and the other RF pin is in a highisolation state. The switch is a “reflective short” on the isolated port.

The switch is manufactured in a compact, 1.1 x 0.7 x 0.45 mm, 6-pin exposed pad plastic Micro Lead-frame Package Dual (MLPD) package.

Data Sheets

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleIn Production

Description (Absorptive/ Reflective)SPDT

Frequency (GHz) Min.2.4

Frequency (GHz) Max.8.3

Typ. IL (dB)0.75

Typ. Isol. (dB)23

Typ. IIP3 (dBm)65

Typ. IP_{1 dB} (dBm)31

Control Logic1.1-3.6v

PackageMLPD, 6L

Package (mm)1.1 x 0.7 x 0.45

Features

Broadband frequency range: 2.4 to 8.3 GHz
Low insertion loss, 0.75 dB typical @ 5 to 7 GHz
High isolation, 23 dB typical @ 5 to 7 GHz
Excellent linearity performance, IP0.1dB = +31 dBm
Single control logic
1.1 V and 3.6 V logic compatibility
Wide 2.7 to 5 V supply voltage range
200 nS switching time
Ultra-miniature, MLPD (6-pin, 1.1 x 0.7 x 0.45 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
