SKY5A1007

0.4 to 5.9 GHz DPDT Low Insertion Loss / High-Isolation Sky5® Switch

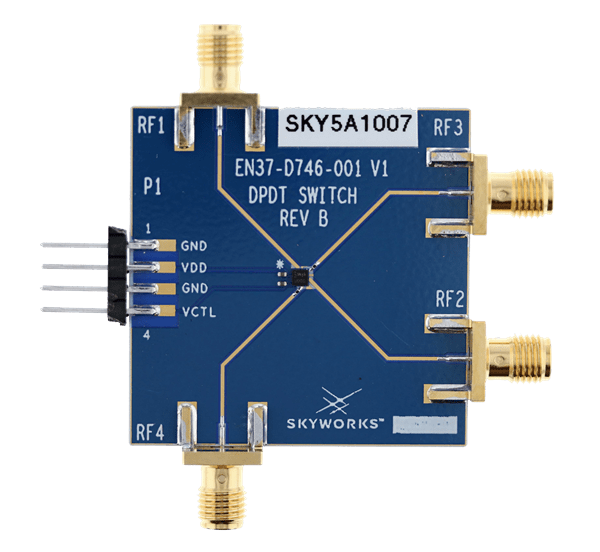

The SKY5A1007 is a state-of-the-art CMOS, silicon-on-insulator (SOI) double-pole, double-throw (DPDT) switch. The switch provides high-linearity performance, low insertion loss, and high isolation.

Switching is controlled by one voltage input, CTRL1. Depending on the logic voltage level applied to this pin, the PORT1 and PORT2 pins connect to one of the two other RF port pins (PORT3 or PORT4) through a low insertion loss path, while maintaining a high isolation path to the alternate port. No external DC blocking capacitors are required on the RF path as long as no DC voltage is applied externally.

The SKY5A1007 DPDT switch is provided in a compact Quad Flat No-Lead (QFN) 1.83 × 1.83 × 0.5 mm package. The SKY5A1007 is part of Skyworks’ Sky5® portfolio of revolutionary products for 5G applications.

Product Summary

Buy Now Talk to Sales

Specifications

Product LifecycleIn Production

Description (Absorptive/ Reflective)DPDT

Frequency (GHz) Min.0.4

Frequency (GHz) Max.5.9

Typ. Isol. (dB)30

Typ. IL (dB)0.7

Typ. IIP3 (dBm)TBD

Typ. IP_{1 dB} (dBm)TBD

PackageQFN, 12L

Package (mm)1.83 × 1.83 × 0.5

Features

Support for automotive PPAP
Support for IMDS material declaration
Independent BOM management to minimize PCN risk
Extended operating temperature: -40 to 105 °C
Broadband frequency range: 0.4 to 5.9 GHz
Low insertion loss: 0.7 dB (typical) @ CV2X/11p frequency (5.75 to 5.925 GHz)
High isolation: 30 dB @ 3.8 GHz
GSM power handling
Small QFN (12-pin, 1.83 × 1.83 × 0.5 mm) package (MSL1, 260°C per JEDEC J-STD-020)

Product Documents

Applications

Automotive

See all

Cellular Telematics

See all

Cellular Compensator

See all
