SKY66114-11

2.4 GHz Front-End Module for Bluetooth® Low Energy/802.15.4/Thread/Zigbee Technology Applications

The SKY66114-11 is a high-performance, fully integrated RF front-end module (FEM) designed for Bluetooth® Low Energy, 802.15.4, Thread, and Zigbee technology applications.

The SKY66114-11 is designed for ease of use and maximum flexibility. The device integrates a high-efficiency saturated PA, high-gain LNA, T/R and bypass switches, and digital controls compatible with 1.6 V to 3.6 V CMOS levels.

The RF blocks operate over a wide supply voltage range from 1.8 V to 3.6 V that allows the SKY66114-11 to be used in battery powered applications over a wide spectrum of the battery discharge curve.

The SKY66114-11 is provided in a small, 16-pin, 2.4 × 2.4 mm Multi-Chip Module (MCM) package.

Evaluation Board

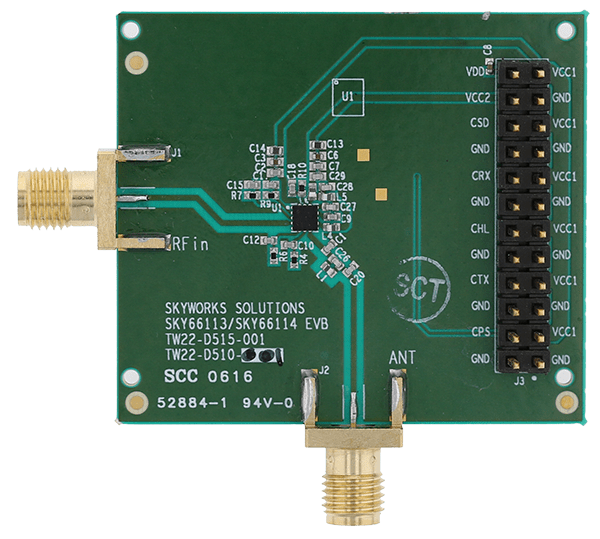

Evaluation Board SKY66114-11EK1 is available.

Reference Designs
The SKY66114-11 FEM has been designed into reference designs with products from Silicon Labs, NXP and Texas Instruments. Combined with our partners’ platforms, the SKY66114-11 meets today’s demand for long-range, low-power and cost-effective solutions.

Silicon Labs: EFR32MG, EFR32BG
NXP: KW20, KW40, JN517x
Texas Instruments: CC26xx

Data Sheets Receive a sample

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleIn Production

RF Frequency (MHz)2400-2483

Rx Insertion Loss (dB) Typ.2

Rx Gain (dB) Typ.12

Tx Gain (dB)24

Rx NF (dB) Typ.2

Saturated Output Power (dBm) Typ.22

Supply Voltage (V)1.8-3.6

PackageMCM, 16-pin

Package (mm)2.4 x 2.4 x 0.7

Features

Integrated PA with up to +23 dBm output power
Integrated LNA with 12 dB gain
Integrated switch selects between PA, LNA, and bypass functions
Low noise figure: 2 dB typical
Single-ended transmit/receive interface
Fast switch on/off time: < 800 ns
Supply range: 1.8 V to 3.6 V
Sleep mode current: < 1 μA typical
No external bias resistor is required
Small MCM (16-pin, 2.4 mm × 2.4 mm × 0.7 mm) package, NiPdAu-plated (MSL3, 260 °C per JEDEC-J-STD-020)
