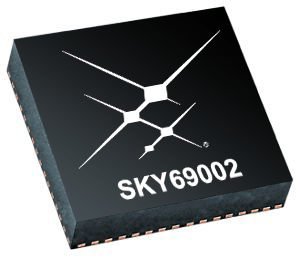

SKY69002

NetSync™ Network Synchronizer Clock for 5G/SyncE/IEEE 1588 applications

The SKY69002 Low-Phase-Noise 5G Wireless NetSync™ with Integrated BAW supporting JESD204B/C utilizes 5th generation DSPLL technology for 5G/6G Wireless IEEE 1588 Applications. It is a feature rich device capable of meeting all the requirements of Synchronous Ethernet (SyncE)-compliant wander filtering and software adjustment of output frequency and phase for IEEE 1588 applications. SKY69002 offers ultra-low jitter and phase noise output clocks eliminating the need for a follow-on jitter attenuator device. It’s combination of unique architecture and features helps enable lower overall system cost, PCB footprint and power consumption - all required for use in today’s high-performance networks.

Product Summary Eval Kit Customize

Support ECAD Model

Specifications

DescriptionNetSync™ Network Synchronizer Clock for 5G/SyncE/IEEE 1588 applications

OPNTBD

Package TypeLGA64

Package Size (mm)9x9

4G/LTE Wireless Clocksfalse

5G Clockstrue

56G SerDestrue

Automotive Gradefalse

Clock Generatorsfalse

Clock outputs16

ControlSPI/I2C

DSPLLs4

Input Frequency Max (MHz)1000

Input Frequency Min (MHz)0.0000005

Intel x86 Clocksfalse

Jitter Attenuating Clockstrue

Jitter Recommended Range (fs)<=100

Line Impedance Match0

Loop Bandwidth Min (MHz)0.000000001

Loop Bandwidth Max (MHz)0.004

Output Format CategoriesDifferential; Single-Ended

Ouput Format(s)LVDS, S-LVDS, AC coupled LVPECL, LVCMOS, HCSL, CML, custom differential

Output Frequency Domains3

Output Frequency Max3200

Output Frequency Min0.0000005

PCI Expresstrue

Phase Jitter (ps RMS)0.047

Real Time Clockfalse

Reference Inputs4 differential or up to 6 single-ended

Reference TypeExternal

Spread Spectrumtrue

Standards ComplianceITU-T G.8273.2 (T-TSC, T-BC), ITU-T G.8273.4 (T-TSC-P, T-TSC-A), G.8262 (EEC Options 1 and 2), G.8262.1 (eEEC), and G.8273.1 (T-GM)

Synchronous Ethernet/1588true

Temperature Range Max (°C)105

Temperature Range Min (°C)-40

VDD (V)1.8; 2.5; 3.3

VDDO (V)1.8; 2.5; 3.3

Wireline or Wireless ApplicationWireless

Embedded XtalOptional

MemoryInt Flash/NVM

AccuTime™ Supportedtrue

Multisynths2

Embedded BAWtrue

Product Documents

Quality and Packaging

Look up product's green / pb-free status and information on RoHS, REACH, Halogen Free, and PFIS.

Certificate of Conformance

Evaluation Kits

SKY69002BA-EVB

SKY69002-01 Low-Phase-Noise Wireless NetSync™ with Integrated BAW

The SKY69002BA-EVB is the evaluation kit for SKY69002 and SKY69001.

The SKY69002BA-EVB makes it easy to move from ClockBuilder Pro device configuration to hands-on performance and functionality evaluation. Contact your local sales representative or sales person for more details. MSRP $850.

Learn More

cbprog-dongle

ClockBuilder Pro Field Programmer

When used with ClockBuilder Pro software, the ClockBuilder Pro Field Programmer makes it simple for systems designers to develop, program, and debug any Si5332/8, Si5350/1/6/7, Si534x/6x/8x/9x, Si540x, Si55xx, SKY6210x, SKY6310x, SKY6900x, and SKY6910x part family clock devices “in-system,” or in one of the convenient QFN or LGA sockets. The field programmer supports I2C or SPI interfaces to the host system, and SPI to the field programmer's QFN or LGA socket boards.

MSRP $149.00
