SKY67150-396LF

300 to 2200 MHz Ultra Low-Noise Amplifier

The SKY67150-396LF is GaAs, pHEMT Low-Noise Amplifier (LNA) with an active bias, high linearity, superior gain, and industryleading Noise Figure (NF) performance. The device features Skyworks advanced, pHEMT enhancement mode process in a compact 2 x 2 mm, 8-pin Dual Flat No-Lead (DFN) package.

The internal active bias circuitry provides stable performance over temperature and process variation. The device offers the ability to externally adjust supply current. Supply voltage is applied to the RFOUT/VDD pin through an RF choke inductor. The RFIN and RFOUT/VDD pins should be DC blocked to ensure proper operation.

The SKY67150-396LF operates in the frequency range of 300 to 2200 MHz using a common layout and band-specific tunes. Operation with high gain and a low NF at frequencies as low as 100 MHz is possible with degraded input return loss.

Data Sheets Eval Kit

Buy Now Talk to Sales ECAD Model

Specifications

Frequency Range (GHz)0.3-2.2

Test Frequency (GHz)0.45
0.849
1.90

Gain Typ. (dB)23.0
20.5
14.5

OIP3 (dBm)36
39
36.5

V_DD (V)5
5
5

OP_{1 dB} (dBm)19
21
18

Supply Current Typ. (mA)82
82
82

Noise Figure Typ. (dB)0.45
0.23
0.38

PackageDFN, 8-pin

Package (mm)2 x 2 x 0.75

Features

Ultra-low Evaluation Board NF of 0.23 dB @ 849 MHz
High OIP3 performance: +39 dBm
Adjustable supply current from 20 to 100 mA
Flexible bias voltage: 3 to 5 V
Temperature and process-stable active bias
Miniature DFN (8-pin, 2 x 2 mm) package (MSL1 @ 260°C per JEDEC J-STD-020)

Product Documents

Evaluation Kits

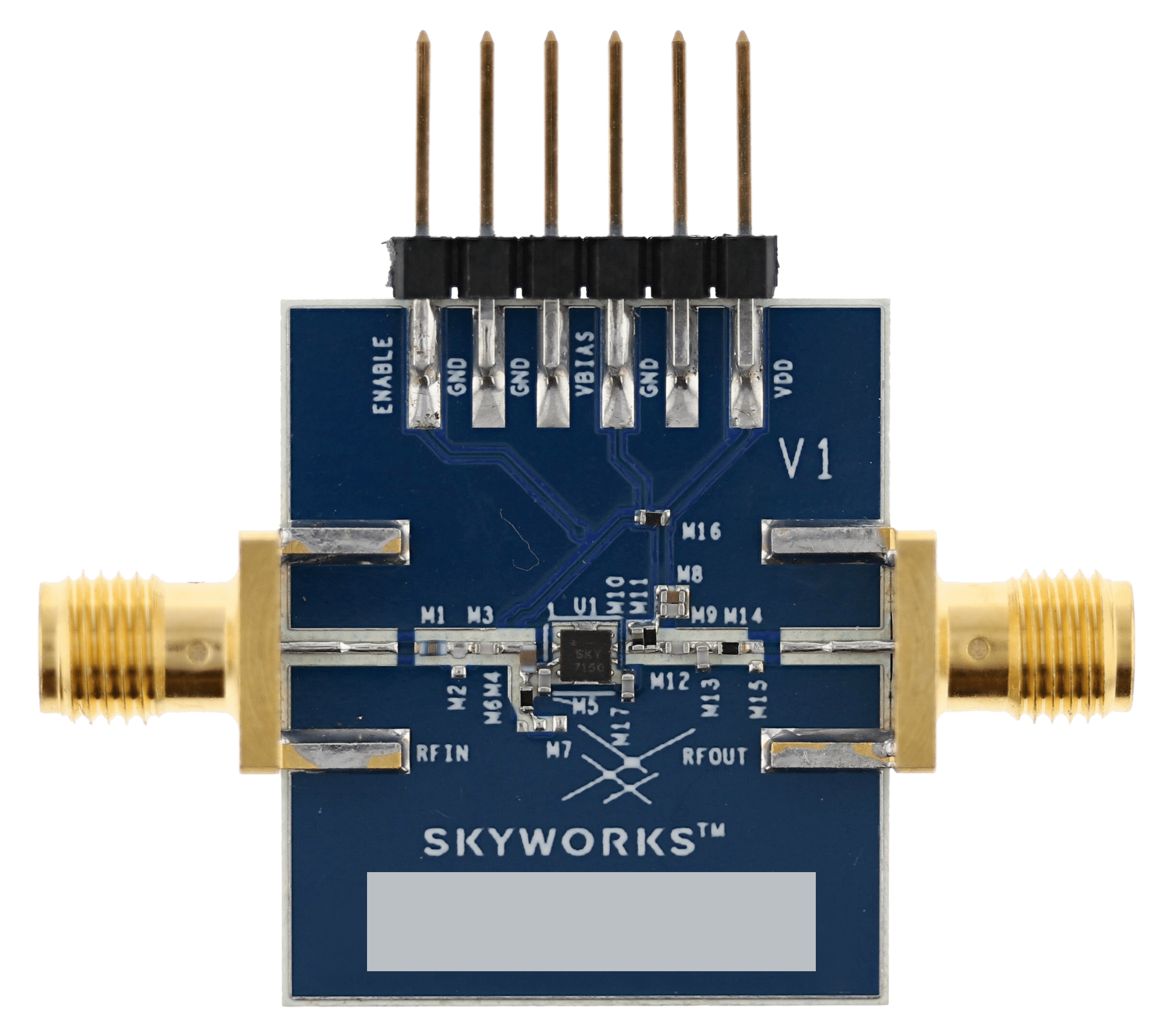

SKY67150-396EK1

EVB for SKY67150-396E, 380 to 530 MHz Tuning

SKY67150-396EK1 is the EVB for SKY67150-396LF, 380 to 530 MHz Tuning.

MSRP $99.00

Buy Now Learn More

SKY67150-396EK2

EVB for SKY67150-396E, 650 to 1100 MHz Tuning

SKY67150-396EK2 is the EVB for SKY67150-396LF, 650 to 1100 MHz Tuning.

MSRP $99.00

Buy Now Learn More

SKY67150-396EK3

EVB for SKY67150-396E, 1400 to 2200 MHz Tuning

SKY67150-396EK3 is the EVB for SKY67150-396LF, 1400 to 2200 MHz Tuning.

MSRP $99.00

Buy Now Learn More
