SKY16706-11

Dual Coupler Module

Please note: SKY16706-11 is being discontinued and is not recommended for new designs.

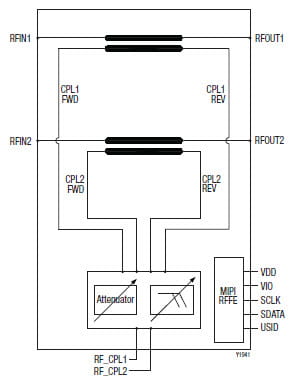

The SKY16706-11 is a dual coupler module (DCM) that consists of two bidirectional couplers with coupled path filtered with a filter optimized for 2.4 GHz and 5 GHz rejection. SKY16706-11 has 50 Ω input and output impedance with internal DC blocking and minimal number of external support components. The DCM is targeted for use in mobile applications. It is compatible with 3GPP GSM, WCDMA, LTE and LTE-A standards and supports the B1, B2, B3, B4, B7, B30, B34, B39, B38, B40, and B41 service bands: for the cellular part. It also supports GPS/GNSS/Beidou localization standards.

The SKY16706-11 is packaged in a compact 16-lead, 1.6 × 1.6 × 0.54 mm surface mount package that meets requirements for board-level assembly.

No external DC blocking capacitors are required on the RF paths as long as no DC voltage is applied. The DCM can operate over the temperature range of –35 °C to +90 °C.

Product Summary

Talk to Sales ECAD Model

Specifications

Product LifecycleLast Time Buy

Description (Absorptive/ Reflective)Dual Coupler with Switched Attenuator

Tx Low-band Insertion Loss (dB) 0.7-1.0 GHz0.09

Tx Low-band Insertion Loss (dB) 1-2 GHz0.16

Tx Low-band Insertion Loss (dB) 2-3 GHz0.22

Typical Directivity25 @
0.7-2.7 GHz

Typical Coupling25 @
0.7-2.7 GHz

Control LogicMIPI

PackageSMT, 16L

Package (mm)1.6 × 1.6 × 0.54

Features

Dual bidirectional couplers
Low insertion loss (0.22 dB typical at 2690 MHz)
25 dB coupling factor at 824 to 2690 MHz
25 dB directivity
High linearity with low harmonics
Programmable low-pass filtering in the coupled paths to reject 2.4 GHz and 5 GHz ISM blockers
Programmable attenuators; 4 programmable steps: 0 dB, 3 dB, 6 dB, and 9 dB state
Supply voltage range of 2.5 V to +4.8 V
Integrated MIPI RFFE interface
Small, lead (Pb)-free and RoHS-compliant, 16-lead surface mount package (1.6 × 1.6 × 0.54 mm) (MSL3 @ 260 °C per JEDEC J-STD-020)
