SKY13596-397LF

0.4 to 3.8 GHz DPDT Switch

The SKY13596-397LF is a state-of-the-art CMOS, Silicon-On- Insulator (SOI) double-pole, double-throw (DPDT) switch. The switch provides high-linearity performance, low insertion loss, and high isolation.

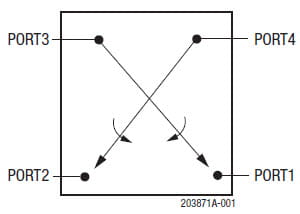

Switching is controlled by one voltage input, CTRL1. Depending on the logic voltage level applied to this pin, the PORT1 and PORT2 pins connect to one of the two other RF port pins (PORT3 or PORT4) through a low insertion loss path, while maintaining a high isolation path to the alternate port. No external DC blocking capacitors are required on the RF path as long as no DC voltage is applied externally.

The SKY13596-397LF DPDT switch is provided in a compact Quad Flat No-Lead (QFN) 2 x 2 mm package.

Product Summary Receive a sample

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleIn Production

Description (Absorptive/ Reflective)DPDT

Frequency (GHz) Min.0.4

Frequency (GHz) Max.3.8

Typ. Isol. (dB)21 @ 2.7 GHz

Typ. IL (dB)0.5 @ 2.7 GHz

Typ. IIP3 (dBm)

Typ. IP_{1 dB} (dBm)

PackageQFN, 12L

Package (mm)2 x 2 x 0.55

Features

Single control voltage input
Broadband frequency range: 0.4 to 3.8 GHz
Low insertion loss: 0.5 dB @ 2.7 GHz
No DC blocking capacitors required
Positive control voltage range: 1.35 to 3.1 V
GSM power handling
Small, QFN (12-pin, 2 x 2 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
