Si5392

Si5392 High-Performance Clock Jitter Attenuator, Jitter Cleaner

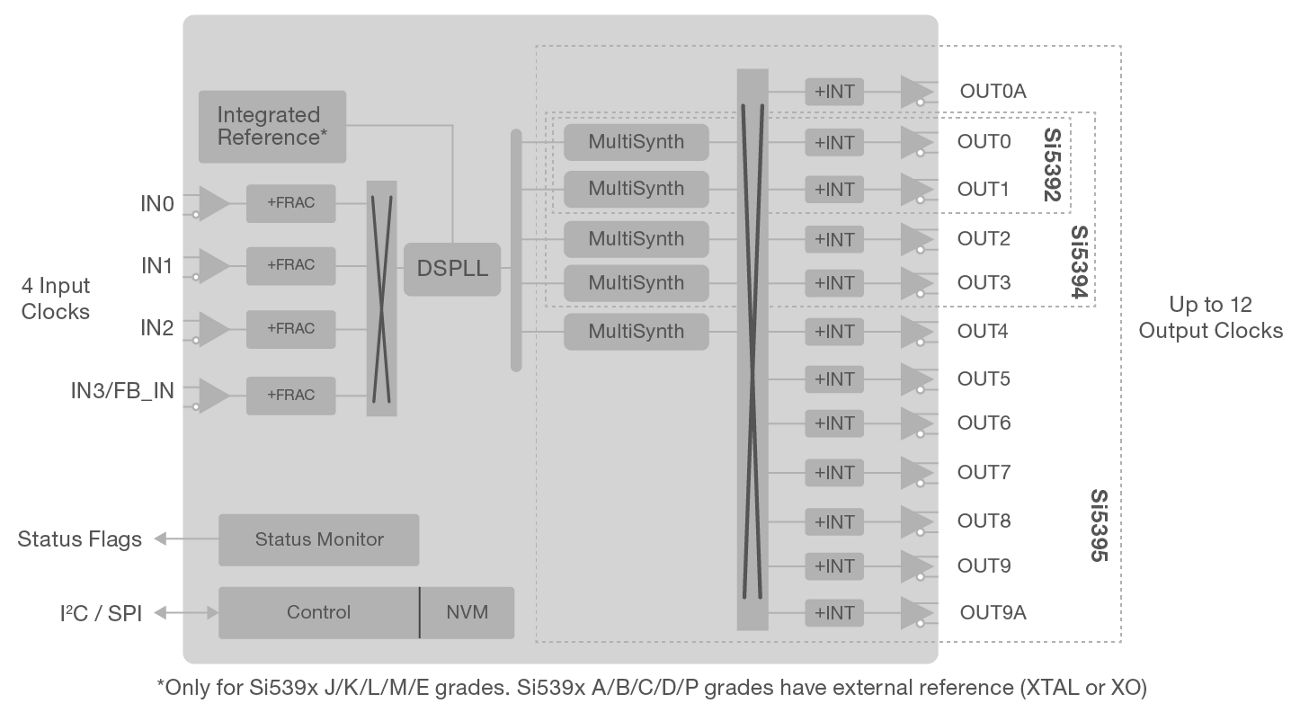

The Si5392 2 -output, ultra-high-performance jitter attenuator combines fourth-generation DSPLL and MultiSynth technologies to enable any-frequency clock generation and jitter attenuation for applications like 56G PAM4 SerDes requiring the highest level of jitter performance. The device has a frequency output range up to 1028 MHz and delivers a 0.09 ps rms phase jitter performance with a 0 ppm error. The loop filter is fully integrated on-chip, eliminating the risk of noise coupling associated with discrete solutions. Further, the jitter attenuation bandwidth is digitally programmable, providing jitter performance optimization at the application level. The Si5392 can be quickly and easily configured using ClockBuilder Pro software.

Si5392 series includes Si5392A, Si5392B, Si5392C, Si5392D, Si5392E, Si5392J, Si5392K, Si5392L, Si5392M, and Si5392P.

Data Sheets Eval Kit Customize

Support ECAD Model

Specifications

Loop Bandwidth Max (MHz)—

Output Bin<

Temperature Range Min (°C)-40

Input Frequency Min (MHz)0.008

Package TypeQFN44

ControlI2C/SPI

OPNSi5392A-A-GM

Line Impedance Match0

Clock Generatorsfalse

Jitter Attenuating Clockstrue

Number of Outputs2

Input Frequency Max (MHz)750

Intel x86 Clocksfalse

Real Time Clockfalse

Package Size (mm)7x7

DescriptionSingle PLL Jitter Attenuator

Frequency ReferenceExternal

4G/LTE Wireless Clocksfalse

56G SerDesfalse

VDDO (V)1.8; 2.5; 3.3

Ouput Format(s)CML; HCSL; LVCMOS; LVDS; LVPECL

VDD (V)1.8; 2.5; 3.3

Jitter Recommended Range (fs)<

Phase Jitter (ps RMS)0.09

PCI Expressfalse

Spread Spectrumfalse

Synchronous Ethernet/1588true

PLLs1

DSPLLs0

Reference Inputs4

Xtal Input Frequency—

Output Format CategoriesDifferential; Single-Ended

Standards Compliance—

Output Frequency Min0.0001

Embedded XtalNo

Loop Bandwidth Min (MHz)—

Temperature Range Max (°C)85

Output Frequency Max (MHz)1028

Multisynths2

MemoryInt NVM
