Si5356A

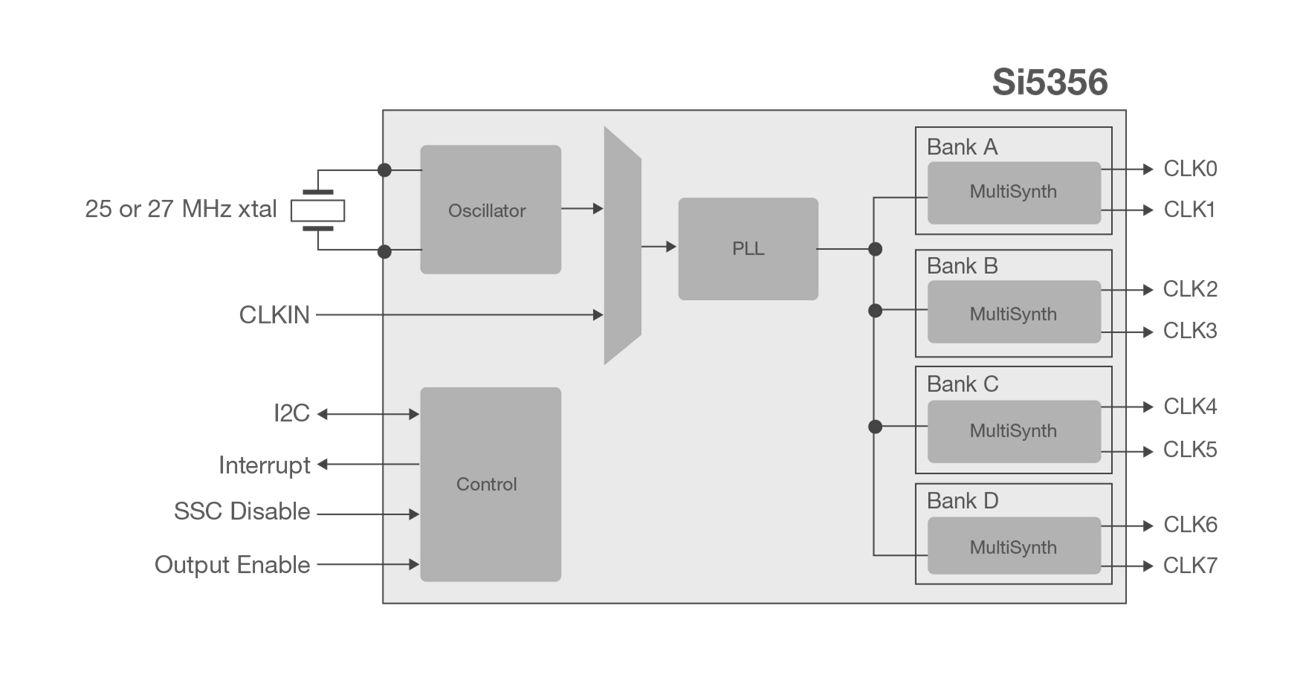

Si5356A LVCMOS 8 Output Clock Generator

The Si5356A LVCMOS Clock Generator supports 8 outputs and has a frequency output between 1 and 200 MHz.

Data Sheets Eval Kit Customize

Support ECAD Model

Specifications

Loop Bandwidth Max (MHz)—

Output Bin5-9

Temperature Range Min (°C)-40

Input Frequency Min (MHz)5

Package TypeQFN24

ControlI2C

OPNSi5356A-B-GM

Line Impedance Match0

Clock Generatorstrue

Jitter Attenuating Clocksfalse

Number of Outputs8

Input Frequency Max (MHz)200

Intel x86 Clocksfalse

Real Time Clockfalse

Package Size (mm)4x4

DescriptionI2C Any-Freq CMOS Clock Gen

Frequency Reference—

4G/LTE Wireless Clocksfalse

56G SerDesfalse

VDDO (V)1.8; 2.5; 3.3

Ouput Format(s)LVCMOS

VDD (V)1.8; 2.5; 3.3

Jitter Recommended Range (fs)<

Phase Jitter (ps RMS)2

PCI Expressfalse

Spread Spectrumfalse

Synchronous Ethernet/1588false

DSPLLs0

Reference Inputs1

Xtal Input Frequency25 MHz or 27 MHz

Output Format CategoriesSingle-Ended

Standards Compliance—

Output Frequency Min1

Embedded Xtalfalse

Loop Bandwidth Min (MHz)—

Temperature Range Max (°C)85

Output Frequency Max200

Product Documents

Quality and Packaging

Look up product's green / pb-free status and information on RoHS, REACH, Halogen Free, and PFIS.

Certificate of Conformance

Evaluation Kits

si5338-56-prog-evb

Si5338/Si5356 Field Programming Evaluation Kit

The Si5338/56-PROG-EVB Field Programming Kit provides all of the tools necessary for writing a new configuration file to the one-time programmable (OTP) non-volatile memory (NVM) in the Si5338/Si5356 any-frequency, any-output clock generator.

MSRP $150.00

Buy Now Learn More

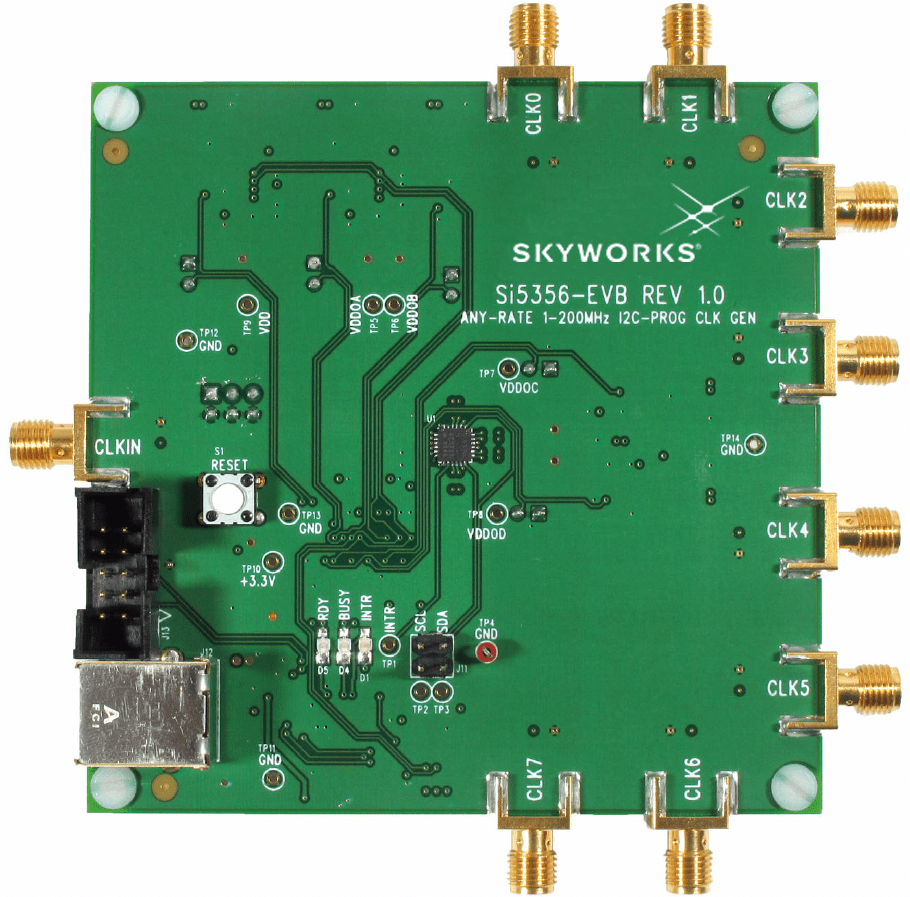

si5356-evb

Si5356 Clock Generator Evaluation Kit

The Si5356-EVB evaluation board is used for evaluating the Si5356 I²C programmable, any frequency 1–200 MHz, quad frequency 8-output clock generator.

MSRP $125.00

Buy Now Learn More

cbprog-dongle

ClockBuilder Pro Field Programmer

When used with ClockBuilder Pro software, the ClockBuilder Pro Field Programmer makes it simple for systems designers to develop, program, and debug any Si5332/8, Si5350/1/6/7, Si534x/6x/8x/9x, Si540x, Si55xx, SKY6210x, SKY6310x, SKY6900x, and SKY6910x part family clock devices “in-system,” or in one of the convenient QFN or LGA sockets. The field programmer supports I2C or SPI interfaces to the host system, and SPI to the field programmer's QFN or LGA socket boards.

MSRP $149.00

Buy Now Learn More
