Si5332A-AM1

Si5332A-AM1 Automotive Clock Generator with 6 Outputs

Si5332A-AM1 any-frequency clock generators provide the highest level of integration available, enabling complete clock tree consolidation in automotive gateway/networking, ADAS, infotainment and autonomous driving hardware platforms. With an output frequency range of 10 - 333, the device features both MultiSynth™ fractional as well as integer dividers. The device features SmartClock™ technology, monitoring the health of the input reference sources and providing the ability to migrate to a backup source in the event of a fault. The Si5332A-AM1 also includes up to 1 user-defined hardware input pins that can be assigned as output enable for one or more outputs, frequency control, spread spectrum enablement or input reference selection. Si5332A-AM1 can be quickly and easily configured using ClockBuilder Pro software, offering both factory pre-programmed as well as in-system programming options.

Data Sheets Eval Kit Customize

Buy Now Support ECAD Model

Specifications

Loop Bandwidth Max (MHz)—

Temperature Range Min (°C)-40

Input Frequency Min (MHz)10

Package TypeQFN32

OPNSi5332A-D-AM1

Line Impedance Match0

Clock Generatorstrue

Jitter Attenuating Clocksfalse

Number of Outputs6

Input Frequency Max (MHz)250

Intel x86 Clocksfalse

Real Time Clockfalse

Package Size (mm)5x5

Description6-Output Clock Generator Auto Grade

Frequency Referencecrystal, clock

4G/LTE Wireless Clocksfalse

56G SerDesfalse

Ouput Format(s)HCSL; LVCMOS; LVDS; LVPECL

VDDO (V)1.8; 2.5; 3.3

VDD (V)1.8; 2.5; 3.3

Phase Jitter (ps RMS)0.19

PCI Expresstrue

Spread Spectrumtrue

Synchronous Ethernet/1588false

DSPLLs0

Reference Inputs1

Xtal Input Frequency16 - 50MHz

Output Format CategoriesDifferential; Single-Ended

PCIe PerformanceGen1/2/3/4/5

Standards ComplianceAECQ-100

Output Frequency Min10

Embedded Xtaltrue

Loop Bandwidth Min (MHz)—

Temperature Range Max (°C)105

Output Frequency Max333

Product Documents

Quality and Packaging

Look up product's green / pb-free status and information on RoHS, REACH, Halogen Free, and PFIS.

Certificate of Conformance

Evaluation Kits

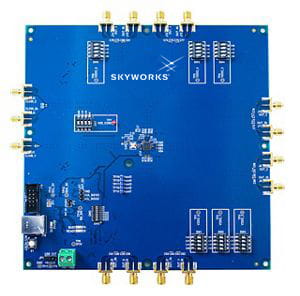

si5332-6a-evb

Si5332 Automotive Grade 6-Output Clock Generator Evaluation Kit

The Si5332-6A-EVB makes it easy to move from ClockBuilder Pro device configuration to hands-on performance evaluation.

MSRP $179.00

Buy Now Learn More

cbprog-dongle

ClockBuilder Pro Field Programmer

When used with ClockBuilder Pro software, the ClockBuilder Pro Field Programmer makes it simple for systems designers to develop, program, and debug any Si5332/8, Si5350/1/6/7, Si534x/6x/8x/9x, Si540x, Si55xx, SKY6210x, SKY6310x, SKY6900x, and SKY6910x part family clock devices “in-system,” or in one of the convenient QFN or LGA sockets. The field programmer supports I2C or SPI interfaces to the host system, and SPI to the field programmer's QFN or LGA socket boards.

MSRP $149.00

Buy Now Learn More
