Si53302-B-GM

Si53302-B-GM Any Format Clock Buffer

The Si53302-B-GM is a universal 2 : 10 low jitter clock buffer/level translator with a pin-selectable output clock signal format and divider selection. The Si53302-B-GM features a glitchless switching mux, making it ideal for redundant clocking applications. The Si53302-B-GM utilizes Silicon Laboratories' advanced CMOS technology to fanout 10 from 1 to 725 MHz with guaranteed low additive jitter, low skew, and low propagation delay variability. The Si53302-B-GM features minimal cross-talk and provides superior supply noise rejection, simplifying low jitter clock distribution in noisy environments. Independent core and output bank supply pins provide integrated level translation without the need for external circuitry.

Data Sheets Eval Kit

Buy Now Support ECAD Model

Specifications

Output Bin>

Temperature Range Min (°C)-40

Package TypeQFN44

OPNSi53302-B-GM

Line Impedance Match0

Universal Bufferstrue

Number of Inputs2

Number of Outputs10

Frequency Max725

Frequency Min (MHz)1

Package Size (mm)7x7

DescriptionUniversal 2:10 Clock Buffer

VDDO (V)1.8 V; 2.5 V; 3.3 V

Ouput Format(s)CML; HCSL; LVCMOS; LVDS; LVPECL

Additive Jitter (ps RMS)0.05

VDD (V)1.8 V; 2.5 V; 3.3 V

PCIe Complianttrue

Feedback Pathfalse

Output Format CategoriesDifferential; Single-Ended

Single Ended Inputfalse

LVCMOS Buffersfalse

Differential Bufferstrue

Dualfalse

Temperature Range Max (°C)85

Zero Delay Buffersfalse

Product Documents

Quality and Packaging

Look up product's green / pb-free status and information on RoHS, REACH, Halogen Free, and PFIS.

Certificate of Conformance

Evaluation Kits

si53301-4-evb

Si533xx Low Jitter Clock Buffer Evaluation Kit

The Si53301/4-EVB development kit allows customers to quickly evaluate the performance of Si5330x low jitter fanout buffers. Populated with a Si53301 2-input, 6-output buffer, the EVB can be used to evaluate the performance of all Si533xx products. The device is easily configured via jumpers with no external software required. SMA connections provide easy connection to test equipment.

MSRP $149.00

Buy Now Learn More

cbprog-dongle

ClockBuilder Pro Field Programmer

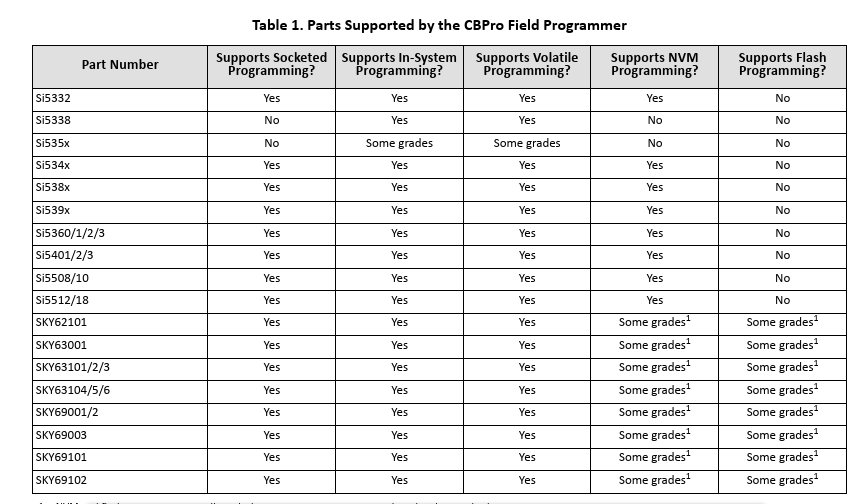

When used with ClockBuilder Pro software, the ClockBuilder Pro Field Programmer makes it simple for systems designers to develop, program, and debug any Si5332/8, Si5350/1/6/7, Si534x/6x/8x/9x, Si540x, Si55xx, SKY6210x, SKY6310x, SKY6900x, and SKY6910x part family clock devices “in-system,” or in one of the convenient QFN or LGA sockets. The field programmer supports I2C or SPI interfaces to the host system, and SPI to the field programmer's QFN or LGA socket boards.

MSRP $149.00

Buy Now Learn More
