SKY87203

3.5 A Constant On-Time, Step-Down DC-DC Converter

Please note: SKY87203 is being discontinued and is not recommended for new designs.

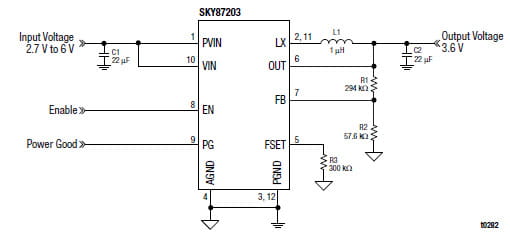

The SKY87203 is a variable switching frequency, 3.5 A constant on-time, synchronous step-down converter. The device provides an output voltage from 0.9 V to 4.0 V from input voltage ranging from 2.7 V to 6.0 V, while keeping excellent line and load regulation and maximizing efficiency.

The constant on-time control allows easy loop stabilization with minimal external components while providing fast transient response.

Power sequencing is controlled by the EN and PG pins.

The SKY87203 has cycle-by-cycle current limits and thermal shutdown to protect against fault conditions. The SKY87203 is available in a 12-pin, 2 mm x 2 mm Quad Flat No-Lead (QFN) package.

Data Sheets

Talk to Sales ECAD Model

Specifications

Product LifecycleObsolete

Min. V_IN (V)2.7

Max. V_IN (V)6.0

Min. V_OUT (V)0.6

Max. V_OUT (V)3.3

I_OUT (mA)3500

f_OSC (kHz)1200

Typ. I_Q (μA)40

PackageQFN, 12L

Package (mm)2.0 x 2.0 x 0.85

Features

Input voltage range: 2.7 V to 6.0 V
Output voltage range: 0.9 V to 4.0 V
Variable switching frequency: 600 kHz to 1.5 MHz
Up to 3.5 A continuous output current
95% peak efficiency
Typical switch on resistance: 50 mΩ PMOS, 40 mΩ NMOS
80% light load efficiency
Power sequencing
Cycle-by-cycle over-current protection
Auto-discharge at power-off
Over-temperature protection
Control loop stabilization with low ESR ceramic capacitors
Soft start
Low profile, QFN (12-pin, 2 mm x 2 mm) package (MSL1, 260ºC per JEDEC J-STD-020)

Product Documents

Applications

Blood Sugar Monitors

See all

Specialty Medical Applications

See all

Hearing Aids

See all

Heart Monitors

See all

Patient Telemetry

See all

Radiation and Clinical Equipment

See all
