SKYA25001

MLB/MB/HB/UHB Diversity Receive Module

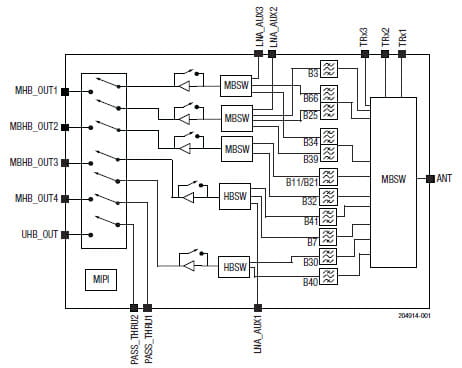

The SKYA25001 is a mid-to-low-band (MLB)/mid-band (MB)/ high-band (HB)/ultra-high-band (UHB) diversity receive module to be used in a cellular mobile device. It supports cellular diversity receiver and cellular transmitter functions.

The diversity module supports all key downlink 2 and 3 carrier aggregation band combinations as well as uplink signals transmitted through the diversity antenna path.

High-performance LNAs with five variable-gain modes are integrated in this device to enable compatibility for next-generation LNA-less LTE transceivers.

The SKYA25001 is compatible with 3GPP GSM, WCDMA, LTE and LTE-A standards and includes filters for the following service bands: B32, B21/11, B3, B39, B25(2), B34, B66(1/4), B40, B30, B41, and B7 for the cellular part.

Product Summary

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleIn Production

DescriptionMLB/MB/HB/UHB Diversity Receive Module

PackageMCM, 34-pin

Package (mm)5 x 4 x 0.75

Features

Rx diversity FEM with 11 integrated filter bands:
- B32 (1452 to 1496 MHz)
- B21/11 (1475.9 to 1510.9 MHz)
- B3 (1805 to 1880 MHz)
- B39 (1880 to 1920 MHz)
- B25(2) (1930 to 1995 MHz)
- B34 (2010 to 2025 MHz)
- B66(1/4) (2110 to 2200 MHz)
- B40 (2300 to 2400 MHz)
- B30 (2350 to 2360 MHz)
- B41(38) (2496 to 2690 MHz)
- B7 (2620 to 2690 MHz)
Low insertion loss
Integrated downlink carrier aggregation (CA) support
High-performance variable gain LNAs
Uplink CA support (TRX1, TRX2, and TRX3 support +26 dBm high power, 1452 to 3800 MHz)
Three auxiliary LNA ports:
- LNA1_AUX 3400 to 3600 MHz (UHB) or 2300 to 2690 MHz (HB) frequency support
- LNA2_AUX: 1805 to 2200 MHz frequency support
- LNA3_AUX: 1805 to 2200 MHz frequency support
LB and MHB pass-through auxiliary ports
Integrated MIPI RFFE interface
Small size 5 x 4 x 0.75 mm 34-lead package
Lead (Pb)-free and RoHS-compliant (MSL3 @ 260 °C per JEDEC J-STD-020)
