SKYA21043

5.9 GHz 802.11p DSRC High-Power Front-End Module

The SKYA21043 is a highly integrated, 5 GHz front-end module (FEM) incorporating a 5 GHz single-pole, double-throw (SPDT) transmit/receive (T/R) switch, a 5 GHz high-gain low-noise amplifier (LNA) with bypass, and a 5 GHz power amplifier (PA) intended for high-power 802.11p applications and systems.

The LNA and PA disable functions ensure low leakage current in the off mode. An integrated logarithmic power detector is included to provide closed-loop power control over 20 dB of dynamic range.

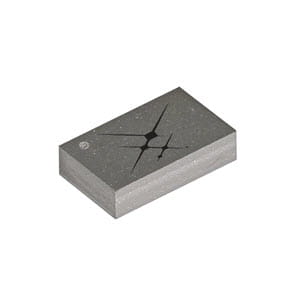

The device is provided in a compact, 24-pin 3 x 5 mm conformally shielded Land Grid Array (LGA) package, which may reduce the front-end board space by more than 50 percent.

Product Summary Receive a sample

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleIn Production

Frequency (GHz) Min.5.85

Frequency (GHz) Max.5.925

Typ. Current @ V_DD = 3.3 V 17.5dBm (mA)

Typ. Current @ V_DD = 3.6 V 17.5dBm (mA)

Typ. Current @ V_CC = 3.6 V (mA)

Typ. P_OUT @ 3.0% EVM (dBm)

Typ. Current @ V_CC = 5 V (mA)

802.11 WLAN Standardp

Antenna Ports1

Architecture5.9 GHz 802.11p DSRC High-Power Front-End Module

PackageMCM, 24-pin

Package (mm)3 x 5 x 1.2

Features

AEC-Q100 Grade 2 (-40 °C to +105 °C) qualified
Support for automotive PPAP
High output power across wide temperature range: +25 dBm, 802.11p/DSRC (5.85 to 5.925 GHz) at +105 °C
8 kV ESD protection on antenna output port
Fully matched input and output
Integrated logarithmic detector with wide dynamic range
Ideal for EU toll booth location reduction to +10 dBm
Highly sensitive, jammer-tolerant (> +10 dBm IIP3), high-gain (16 dB) LNA
Compact conformally shielded package: 24-pin, 3 x 5 mm package
MSL3, 260 °C, per JEDEC J-STD-020
