SKY85331-11

2.4 GHz High-Power 802.11ax WLAN Front-End Module

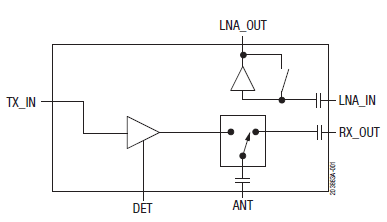

The SKY85331-11 is a highly integrated, 2.4 GHz front-end module (FEM) incorporating a 2.4 GHz single-pole, double-throw (SPDT) transmit/receive (T/R) switch, a 2.4 GHz low-noise amplifier (LNA) with bypass, and a 2.4 GHz power amplifier (PA) intended for high-power 802.11ax applications and systems.

The LNA and PA disable functions ensure low leakage current in the off mode. An integrated logarithmic power detector is included to provide closed-loop power control over 20 dB of dynamic range.

The device is provided in a compact 24-pin 3 x 5 mm conformally shielded Land Grid Array (LGA) package, which may reduce the front-end board space by more than 50 percent.

Product Summary

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleIn Production

Frequency (GHz) Min.2.4

Frequency (GHz) Max.2.5

802.11 WLAN Standardax

Antenna Ports1

ArchitectureWLAN Front-End Module

Typ. P_OUT @ 3.0% EVM (dBm)26

Typ. Current @ V_CC = 5 V (mA)470

Typ. Tx Gain (dB)33

V_DD (V)5

PackageQFN, 24-pin

Package (mm)3 x 5 x 0.85

Features

Integrated high-performance 2.4 GHz PA, LNA with bypass, and T/R switch
Fully matched input and output
Integrated logarithmic power detector
Transmit gain: 33 dB
Supports 802.11ax: output power:
- +20 dBm, -43 dB DEVM, MCS11
- +22 dBm, -40 dB DEVM, MCS11
- +24 dBm, -35 dB DEVM, MCS9
Integrated, temperature-compensated log detector
High LNA gain: 15 dB
Small (24-pin, 3 x 5 mm) conformally shielded package (MSL3, 260 °C per JEDEC J-STD-020)

Product Documents

Applications

Routers and Gateways
