SKY65903-11

Low-Noise Amplifier Front-End Module with GPS/GNSS/BDS Pre- and Post-Filters

Please note: SKY65903-11 is being discontinued and is not recommended for new designs. The suggested replacement is SKY65933-11

The SKY65903-11 is a front-end module (FEM) with an integrated low-noise amplifier (LNA), and pre- and post-filters designed for Global Positioning System/Global Navigation Satellite System/Beidou Navigation Satellite System (GPS/GNSS/BDS) receiver applications. The device provides high linearity, excellent gain, and a low noise figure (NF).

The pre- and post-filters provide low in-band insertion loss and excellent rejection for the cellular, PCS, and WLAN frequency bands.

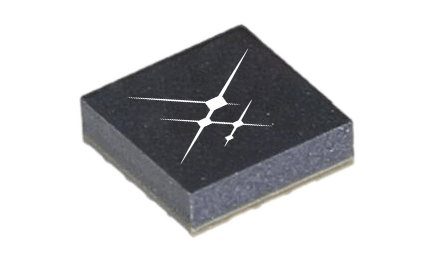

The SKY65903-11 uses surface-mount technology (SMT) in the form of a 2.5 x 2.5 mm Multi-Chip Module (MCM) package, which allows for a highly manufacturable and low-cost solution.

Product Summary Receive a sample

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleLast Time Buy

Frequency (MHz)TBD

Replacement Part SKY65933-11

Test Frequency (MHz)TBD

DescriptionGPS/GNSS/GNSS Pre- and Post-Filters + LNA Front-End Module

Gain (dB)TBD

V_DD (V)TBD

I_{P1 dB} (dBm)TBD

NF (dB)TBD

PackageMCM, 16-pin

Package (mm)2.5 x 2.5

Features

Small signal gain: 14.2 dB
In-band IIP3: –7.3 dBm
Low noise figure: 1.7 dB
Low current consumption
Input/output impedance internally matched to 50 Ω
Single DC supply: 1.8 V
No external SMT required
Small, MCM (16-pin, 2.5 x 2.5 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

Product Documents

Applications

Cameras

See all

Wearables

See all
