SKY65720-11

Shielded Low-Noise Amplifier Front-End Module with GPS/GNSS/BDS Pre-Filter

Please note: SKY65720-11 is being discontinued and is not recommended for new designs. The suggested replacement is SKY65725-11

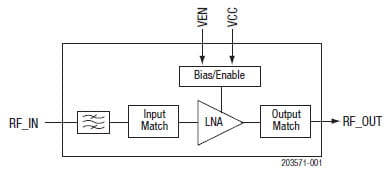

The SKY65720-11 is a shielded front-end module (FEM) with an integrated low noise amplifier (LNA) and pre-filter designed for Global Positioning System/Global Navigation Satellite System/Beidou Navigation Satellite System (GPS/GNSS/BDS) receiver applications. The device provides high linearity, excellent gain, a high 1 dB input compression point (IP1dB), and a superior noise figure (NF).

The pre-filter provides the low in-band insertion loss and integrated notch filtering for excellent rejections of the cellular, PCS, and WLAN frequency bands. The SKY65720-11 uses surface-mount technology (SMT) in a 1.6 x 1.6 x 0.8 mm Multi-Chip Module (MCM) package, which allows for a highly manufacturable and low-cost solution.

Data Sheets

Talk to Sales ECAD Model

Specifications

Product LifecycleLast Time Buy

Frequency (MHz)TBD

Replacement Part SKY65725-11

Test Frequency (MHz)TBD

DescriptionGPS/GNSS/GNSS Pre-Filter + LNA Front-End Module

Gain (dB)TBD

V_DD (V)TBD

I_{P1 dB} (dBm)TBD

NF (dB)TBD

PackageMCM, 9-pin

Package (mm)1.6 x 1.6

Features

Innovative proprietary shielded technology
Wideband pre-filter
Small signal gain: 16 dB typical
Excellent out-of-band rejection
Low noise figure: 1.5 dB typical
Low current consumption
Input/output impedance internally matched to 50 
Single DC supply: 1.8 V
Minimal number of external components required
Small, MCM (9-pin, 1.6 x 1.6 x 0.8 mm) package (MSL3, 260 °C per JEDEC J-STD-020)
