SKY65364-21

900 MHz Transmit/Receive High-Power Front-End Module

Please note: SKY65364-21 is being discontinued and is not recommended for new designs.

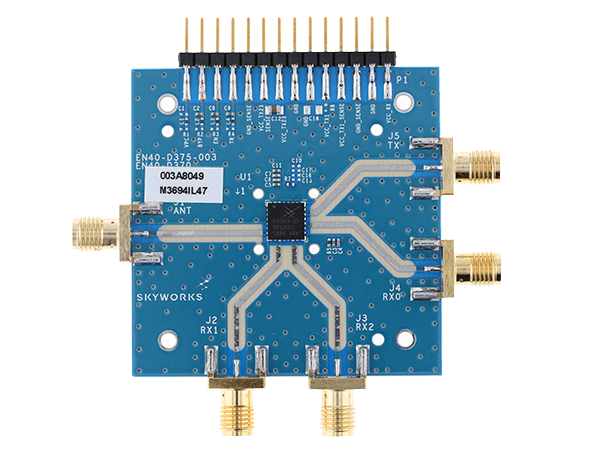

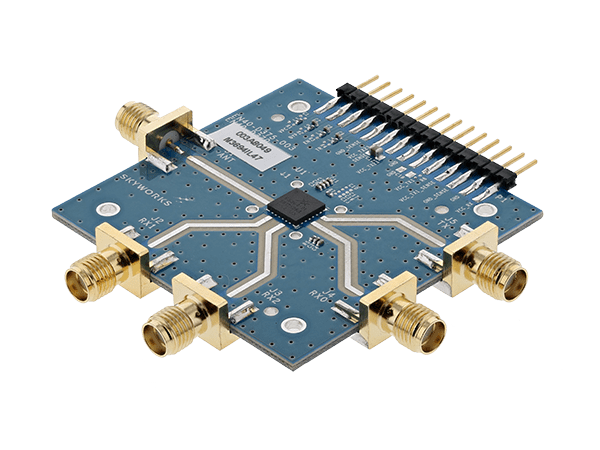

The Skyworks SKY65364-21 is a high-performance, transmit/receive (T/R) high-power front-end module. The device provides a complete T/R chain with T/R switches.

The device transmit chain features +30 dBm output power and a 40 percent power-added efficiency (PAE).

The device receive chain features a low-noise amplifier (LNA) with a 1.5 dB noise figure (NF) and 15 dB gain. The cascaded NF and gain, taking into account the 0.5 dB insertion loss transmit/receive antenna switch, are 2.1 dB and 14.5 dB, respectively, which makes the SKY65364-21 ideal for medium power microwave links such as 900 MHz Industrial, Scientific, and Medical (ISM) band applications.

The module also has a shutdown mode, PA bypass mode, and LNA bypass mode to minimize power consumption.

The device is mounted in a 28-pin, 6 x 6 mm Multi-Chip Module (MCM) surface-mount technology (SMT) package, which allows for a highly manufacturable low-cost solution.

Data Sheets

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleLast Time Buy

RF Frequency (MHz)890-960

Rx Insertion Loss (dB) Typ.0.5

Rx Gain (dB) Typ.15

Tx Gain (dB)22

Rx NF (dB) Typ.1.5

Saturated Output Power (dBm) Typ.30

Supply Voltage (V)3.0-3.8

PackageMCM, 28-pin

Package (mm)6 x 6 x 0.9

Features

Transmit output power > +30 dBm
High-efficiency PA
Analog power control
Receive path NF <2.1 dB
PA bypass mode
LNA low-current mode with external resistor
LNA bypass mode
Integrated control logic
Internal RF match and bias circuits
All RF ports internally DC blocked
Shutdown mode
Small footprint MCM (28-pin, 6 x 6 mm) package (MSL3, 260 °C per JEDEC J-STD-020)
