SKY58085-11

Sky5® Mid- and High Band Front-End Module for 3G, 4G, and 5G Applications

Please note: SKY58085-11 is being discontinued and is not recommended for new designs.

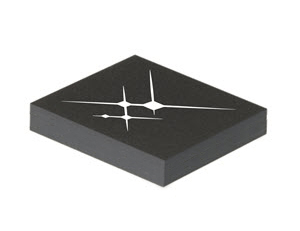

The SKY58085-11 Mid- and High Band Front-End Module (FEM) supports 3G / 4G / 5G mobile devices and operates efficiently in 3G / 4G /5G modes. The module has separate 3G / 4G / 5G PA blocks operating in the mid- and high bands, a silicon controller containing the MIPI® RFFE® interface, RF band switches, MB and HB antenna switches, bi-directional couplers, and integrated filters for Bands 1, 2, 3, 7, 34, 39, 40 and 41. RF I/O ports are internally matched to 50 ohms to minimize the need for external components. Extremely low leakage current maximizes device standby time. IC die and passive components are mounted on a multi-layer laminate substrate. The 62-pad LGA assembly, encapsulated in an 8.6 mm x 6.5 mm x 0.65 mm SMT plastic package, offers a highly manufacturable and low-cost solution.

The SKY58085-11 module is designed to meet stringent 5G NR and LTE advanced requirements where wider bandwidth (100 MHz) and carrier aggregation are utilized for higher data rates. The combined filtering, RF matching, and TRx switching internal to the module optimizes performance for popular Downlink (DL) CA band combinations, all in a compact and low cost solution. The module contains all needed components between the antenna and RFIC transceiver and are optimized for superior Rx sensitivity and Tx efficiency. Two ANT ports provide best flexibility to support multiple ANT configurations and ANT swap function. For the Uplink, the PA blocks support very wide bandwidth 5G NR operations: up to 60 MHz for n1 and up to 100 MHz for n41.

The SKY58085-11 is part of Skyworks’ Sky5® portfolio of revolutionary products for 5G applications.

Product Summary

Talk to Sales

Specifications

Product LifecycleEnd Of Life

Function5G- LMHB

DescriptionMid- and High Band Front-End Module for 3G, 4G, and 5G Applications

SKUEMEA

Package (mm)8.6 x 6.5

PackageLGA, 62-pad

Features

MIPI® RFFE 2.1 control interface w/ 1.8 V nominal supply
Supports Envelope Tracking (ET) operation for EN-DC applications
Two ANT output ports support flexible ANT configurations and swap
Integrated pentaplexer filter for Bands 1, 3, and 40
Integrated duplexers for Bands 2 and 7
Integrated diplexer filter for Bands 34/39
Integrated filter for Band 41F
One auxiliary MB Tx outputs for external filters; One auxiliary HB Tx output for external filter
Two auxiliary TRx ports to support additional bands
Auxiliary Mid-Band antenna switch input for 2G Tx output from low band module • Integrated bi-directional RF coupler with cascade support
All RF I/O ports matched to 50 ohm impedance
Small, low profile package: 8.6mm x 6.5 mm x 0.65 mm, 62-pad Large Grid Array (LGA) configuration
3G Features:
- WCDMA, HSPA+
- TD-SCDMA, TD-HSPA
- CDMA2000 1x RC1, RC3, EVDO (Rev A)
4G Features:
- FDD/TDD LTE
- Uplink QPSK, 16QAM, and 64QAM
- Intra-band Uplink Carrier Aggregation
  - 35 MHz (175RB) for Band 39
  - 40 MHz (200RB) for Bands 1, 2, 3, 7, 40 and 41
  - 60 MHz (300RB) for Bands 40 and 41
- Inter-band Downlink CA support
5G Features:
- FDD/TDD NR Bands
- Uplink QPSK, 16QAM, 64QAM, 256QAM
- Up to 100 MHz APT and ET
