SKY55950-11

Sky5® Low-Current GNSS LNA Front-End Module with Integrated Pre-Filter and Post-Filter

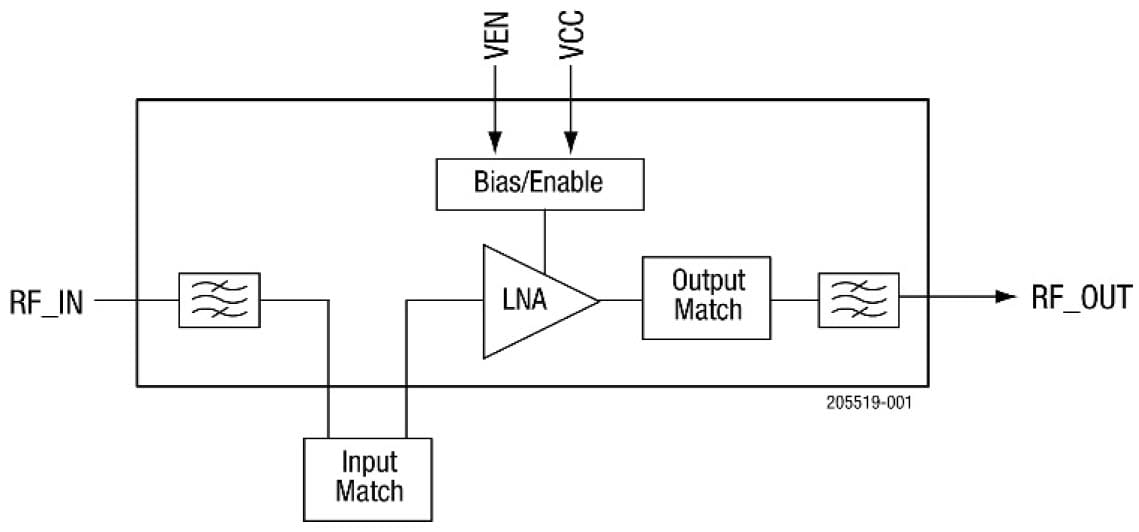

The SKY55950-11 is a front-end module (FEM) with an integrated low-noise amplifier (LNA) and pre-filter and post-filter designed for Global Navigation Satellite System (GNSS) receiver applications. The SKY55950-11 is part of our Sky5® product portfolio. The device provides low-current, excellent out-of-band rejection, and low noise figure. The pre-filter and post-filter provide low in-band insertion loss and excellent rejection for the cellular, PCS, and WLAN frequency bands. Output matching components are embedded inside the device. Only one external input matching inductor is required.

The SKY55950-11 is optimized to operate at 1559 to 1606 MHz, which makes it ideal for GPS / GLONASS / Galileo / Compass / QZSS radio receiver applications.

The SKY55950-11 uses surface-mount technology (SMT) in the form of a 2.5 x 2.5 x 0.56 (typical) mm Multi-Chip Module (MCM) package, which allows for a highly manufacturable and low-cost solution.

SKY55950-11 is pin-to-pin compatible to SKY65943-11.

Data Sheets

Talk to Sales ECAD Model

Specifications

Product LifecycleSamples Only

Frequency (MHz)1559-1606

Test Frequency (MHz)1575

DescriptionSky5® Low-Current GNSS LNA Front-End Module with Integrated Pre-Filter and Post-Filter

Gain (dB)16

V_DD (V)1.5-3.6

I_{P1 dB} (dBm)

NF (dB)1.9

PackageMCM, 10-pin

Package (mm)2.5 x 2.5 x 0.56

Features

Small signal gain: 16 dB
Out-of-band P1dB: +8 dBm
Out-of-band rejection: +90 dBc, 1627 to 1629 MHz
Low noise figure: 1.9 dB
Low current consumption: 1 mA @ 1.8 V
Input/output impedance internally matched to 50 Ω
Single DC supply: 1.5 to 3.6 V
Minimum number of external SMT devices required
Small MCM (10-pin, 2.5 x 2.5 x 0.56 [typical] mm) package (MSL3, 260 °C per JEDEC J-STD-020)
