RFX2401C

CMOS 2.4GHZ ZIGBEE/ISM TRANSMIT/RECEIVE RFeIC

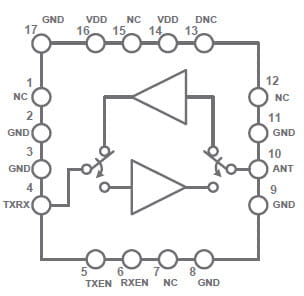

The RFX2401C is a fully integrated, single-chip, single-die RFeIC (RF Front-end Integrated Circuit) which incorporates all the RF functionality needed for IEEE 802.15.4/ZigBee, wireless sensor network, and any other wireless systems in the 2.4GHz ISM band. The RFX2401C architecture integrates the PA, LNA, Transmit and Receive switching circuitry, the associated matching network, and the harmonic filter all in a CMOS single-chip device.

Typical high power applications include home and industrial automation, smart power, and RF4CE among others. Combining superior performance, high sensitivity and efficiency, low noise, small form factor, and low cost, RFX2401C is the perfect solution for applications requiring extended range and bandwidth. RFX2401C has simple and low-voltage CMOS control logic, and requires minimal external components for system implementation.

Data Sheets

Talk to Sales ECAD Model

Specifications

Product LifecycleIn Production

RF Frequency (MHz)2400-2525

Rx Insertion Loss (dB) Typ.

Rx Gain (dB) Typ.11

Tx Gain (dB)24

Rx NF (dB) Typ.3

Saturated Output Power (dBm) Typ.22

Supply Voltage (V)

Package

Package (mm)3 x 3

Features

2.4GHz ZigBee High Power Single-Chip, Single-Die RF Front-End IC
Combined TX / RX Transceiver Port and Single Antenna Port
2.4GHz Transmit High Power Amplifier with Low- Pass Harmonic Filter
Low Noise Amplifier
Transmit / Receive Switch Circuitry
High Transmit Signal Linearity Meeting Standards for OQPSK Modulation
Low Voltage (1.2V) CMOS Control Logic
ESD Protection Circuitry on All Ports
DC Decoupled RF Ports
Internal RF Decoupling on All VDD Bias Pins
Low Noise Figure for the Receive Channel
Very Low DC Power Consumption
Full On-chip Matching and Decoupling Circuitry
Minimal External Components Required
50-Ohm Input / Output Matching
Market Proven CMOS Technology
3 x 3 x 0.55mm Small Outline QFN-16 Package with Exposed Ground Pad
