SKY85601-11

4.9-5.9 GHz SPDT Switch With Low-Noise Amplifier

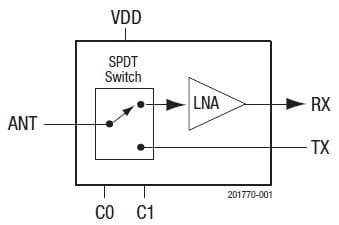

The SKY85601-11 is an integrated, Single-Pole Double-Throw (SPDT) switch with a Low-Noise Amplifier (LNA) intended for wireless applications. The device has a low Noise Figure (NF) with high linearity in the transmit mode.

The SKY85601-11 operates at 3.3 V and draws 15 mA of current. In the transmit mode, a shutdown function saves power when the device is inactive. The switch requires five external components.

The switch is manufactured in a compact, 2.5 x 2.5 mm, 16-pin Quad Flat No-Lead (QFN) package. The small footprint provides the industry’s smallest PCB area needed to implement an integrated broadband SPDT switch with LNA functionality.

Product Summary Receive a sample

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleIn Production

Frequency (GHz) Min.4.9

Frequency (GHz) Max.5.9

Typ. Current @ V_DD = 3.3 V 17.5dBm (mA)

Typ. Current @ V_DD = 3.6 V 17.5dBm (mA)

Typ. Current @ V_CC = 3.6 V (mA)

Typ. P_OUT @ 3.0% EVM (dBm)

Typ. Current @ V_CC = 5 V (mA)

802.11 WLAN Standarda/n

Antenna Ports1

Architecture5 GHz RX Front End Module

Typ. P_OUT @ 2.5% EVM (dBm)

Typ. Tx Gain (dB)

Typ. P_OUT (dBm)

V_DD (V)

V_CC (V)3.0-3.6

PackageQFN, 16-pin

Package (mm)2.5 x 2.5 x 0.45

Features

Low Noise Figure: 2.5 dB
Frequency range: 4.9 to 5.9 GHz
High IIP3: +6 dBm
High gain: 12 dB
Bypass mode with –5 dB insertion loss
High transmit to receive isolation for high power applications
Small QFN (16-pin, 2.5 x 2.5 mm) package (MSL1, 260 °C per JEDEC J-STD-020)

Product Documents

Applications

Routers and Gateways

See all

Wireless Audio/Video

See all
