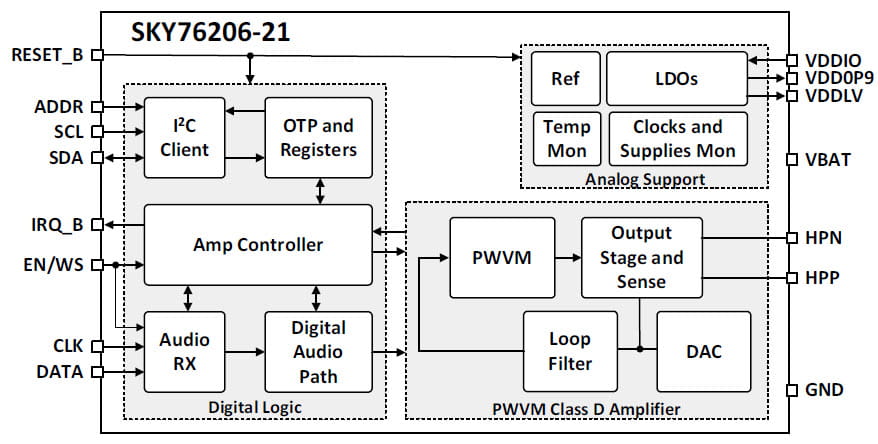

SKY76206-21

Mono Low-Power Multi-Level Class-D Audio Amplifier for Wearable Electronics

The Skyworks SKY76206-21 Mono Low-power Multi-Level Class D Audio Amplifier IC is an innovative Class DG amplifier that delivers world class audio performance in a compact package with ultra-low quiescent power levels and is ideal for wearable electronics where battery life is critical.

Unlike most Class D amplifiers on the market, the SKY76206-21 directly processes a digital audio input to create its audio output. The audio signal is reproduced with very high fidelity, even in dense electronics with multiple nearby radio transmitters. Ultra-low latency input benefits Acoustic Noise Cancellation (ANC) systems. High-power output is possible for demanding over-ear applications.

The device is optimized for efficiency at low output power levels where most Class D amplifiers are highly inefficient, making it the right fit for wearables with high sensitivity speaker drivers. A low quiescent power in active mode, and its state-of-the-art pop and click suppression makes transitions into the low power consumption standby mode a seamless experience to the user while preserving battery life.

Data Sheets

Talk to Sales

Specifications

Product LifecycleIn Production

DescriptionMono Low-Power Multi-Level Class-D Audio Amplifier

Package15-pin WLCSP

Package (mm)1.54 x 1.54 x 0.471

Features

Filterless multi-level Class D output
Low power consumption:
- Quiescent power of 800 μW @ 1.2 V
- Standby power (I²C activity) of 60 μW @ 1.2 V
- Reset power <4 μW
High incremental output efficiency:
- 82% (62 mW output to 16 Ω)
- 88% (100 mW output to 16 Ω)
High quality audio performance:
- DNR > 111 dB (A-weighted)
- THD+N: –84 dB
- PSRR: 94 dB at 20 kHz
- Pop and click suppression <–76 dBV_PK
Low latency: < 5 μS
Supply voltage inputs:
- VBAT (+2.3 V to +4.9 V)
- VDDIO (+1.2 V to +1.8 V)
Internally-generated low-voltage supplies
Audio turn-on or turn-off time: 1.8 ms
Operating Modes:
- Reset
- Standby
- Audio normal-gain mode: 0 dB
- Audio high-gain mode: +6 dB
- Fault
Refer to data sheet for additional features and information
