SKY67183-396LF

400 to 6000 MHz Broadband Low-Noise Amplifier

The SKY67183-396LF is a wide-band low-noise amplifier with superior gain flatness and exceptional linearity.

The compact 2 x 2 mm, 8-pin Dual Flat No Lead packaged LNA is designed for FDD and TDD 4G LTE and 5G NR infrastructure systems operating from 400 to 6000 MHz.

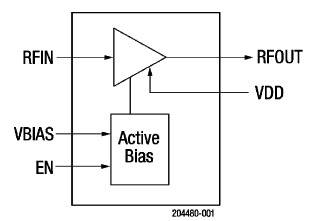

The internal active bias circuitry provides stable performance over temperature and process variation.

Data Sheets Eval Kit

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleIn Production

Frequency Range (GHz)0.4-6.0

Test Frequency (GHz)1.95 / 2.5 / 3.6 / 4.5

PackageDFN, 8-pin

Gain Typ. (dB)22.7 / 21.4 / 19.1 / 18.2

Package (mm)2 x 2

IIP3 (dBm)

OIP3 (dBm)32.2 / 32.7 / 28.9 / 29

I_{P1 dB} (dBm)

OP_{1 dB} (dBm)20.2 / 22 / 20.1 / 19

V_DD (V)5

Supply Current Typ. (mA)56

Noise Figure Typ. (dB)0.38 / 0.41 / 0.43 / 0.5

Features

Low-noise amplifier:
- Very low noise figure
- Temperature and process-stable active bias up to +115 °C
- Wide operating voltage range
- Low gain slope over operating band
- Excellent input return loss
Integrated controller:
- Stable amplifier bias
- Temperature compensation
- True logic level thresholds
- Fast response time
Excellent broadband flat gain performance
Minimal BOM count
Low current IDD 56 mA @ 5 V
Fast rise/fall time ENABLE function suitable for TDD application
Miniature DFN (8-pin, 2 x 2 mm) package (MSL1 @ 260 °C per JEDEC J-STD-020)

Product Documents

Applications

Small Cells

See all

Macro Base Station

See all

Massive MIMO

See all

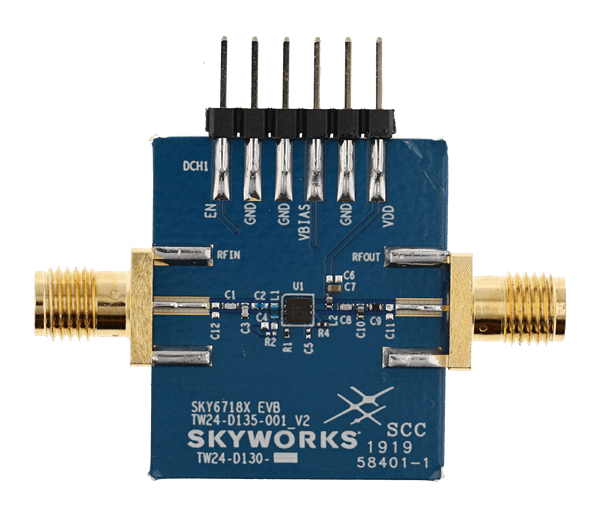

Evaluation Kits
