SKY67159-396LF

200 to 3800 MHz Broadband Low-Noise Amplifier

The SKY67159-396LF is an ultra-broadband low-noise amplifier with superior gain flatness and exceptional linearity.

The compact 2 x 2 mm, 8-pin Dual Flat No Lead packaged LNA is designed for FDD and TDD 2G/3G/4G LTE small-cell base stations operating from 200 to 3800 MHz.

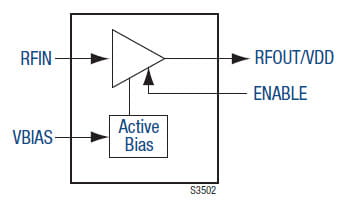

The internal active bias circuitry provides stable performance over temperature and process variation. The device offers the ability to externally adjust supply current.

Read More

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleIn Production

Frequency Range (GHz)0.2-3.8

Test Frequency (GHz)0.7
2.7
3.8

Gain Typ. (dB)17.5
17.0
16.5

OIP3 (dBm)31
29
27

V_DD (V)3.3
3.3
3.3

OP_{1 dB} (dBm)18
16
14.5

Supply Current Typ. (mA)45
45
45

Noise Figure Typ. (dB)0.95
1
1.3

PackageDFN, 8-pin

Package (mm)2 x 2 x 0.75

Features

Excellent broadband flat gain performance
Low noise figure
High IP3 performance over voltage
Single matching circuit for 200 to 3800 MHz
Adjustable supply current from 30 to 100 mA
Flexible bias voltage: 3 to 5 V
Fast rise/fall time ENABLE function suitable for TDD application
Temperature and process-stable active bias up to +105°C
Miniature DFN (8-pin, 2 x 2 mm) package (MSL1 @ 260°C per JEDEC J-STD-020)
