SKY66397-12

2300 to 2700 MHz Wide Instantaneous Bandwidth High-Efficiency Power Amplifier

Please note: SKY66397-12 is being discontinued and is not recommended for new designs.

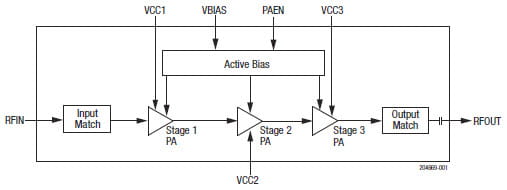

The SKY66397-12 is a high-efficiency fully input/output matched power amplifier (PA) with high gain and linearity. The compact 5 X 5 mm PA is designed for FDD and TDD 2G/3G/4G LTE small cell base stations operating from 2300 to 2700 MHz. The active biasing circuitry is integrated to compensate PA performance over temperature, voltage, and process variation.

The SKY66397-12 is part of high-efficiency, pin-to-pin compatible PA family supporting all 3GPP bands. Table 1 lists the pin-to-pin compatible parts in the PA family.

Data Sheets

Talk to Sales ECAD Model

Specifications

Product LifecycleLast Time Buy

Frequency Range (GHz)2.3-2.7

Test Frequency (GHz)2.63

Gain Typ. (dB)37

OIP3 (dBm)35.5

P_{1 dB} (dBm)NA

Power Added Efficiency (%)33

Linear Output Power (dBm) 28

V_CC (V)5

Quiescent Current Typ. (mA)90

PackageMCM, 16-pin

Package (mm)5 x 5 x 1.3

Features

High-efficiency: PAE = 35% @ +28 dBm
High linearity: +28 dBm with < -50 dBc ACLR with pre-distortion (40 MHz LTE, 8.5 dB PAR signal)
High gain: 35 dB
Excellent input and output return loss: to 50 Ω system
Integrated active bias: performance compensated over temp
Integrated enable On/Off function: PAEN = 1.5 to 2.5 V
Single supply voltage: 5.0 V
Pin-to-pin compatible PA family supporting all 3GPP bands
Compact (16-pin, 5 X 5 X 1.3 mm) package (MSL3, 260 °C per JEDEC J-STD-020)
