SKY66313-11

3400 to 3600 MHz Wide Instantaneous Bandwidth High-Efficiency Power Amplifier

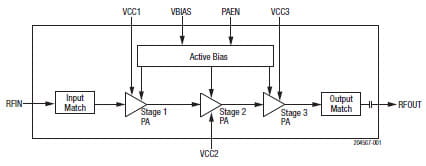

The SKY66313-11 is a highly efficient, wide instantaneous bandwidth, fully input/output matched power amplifier (PA) with high gain and linearity. The compact 5 x 5 mm PA is designed for FDD and TDD 4G LTE and 5G systems operating from 3400 to 3600 MHz. The active biasing circuitry is integrated to compensate PA performance over temperature, voltage, and process variation.

The SKY66313-11 is part of a high-efficiency, pin-to-pin compatible PA family supporting major 3GPP bands.

Data Sheets Receive a sample

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecyclePre Release

Frequency Range (GHz)3.4-3.6

Test Frequency (GHz)3.5

Gain Typ. (dB)37

OIP3 (dBm)34.5

P_{1 dB} (dBm)33

Power Added Efficiency (%)15

Linear Output Power (dBm) 23

V_CC (V)5

Quiescent Current Typ. (mA)115

PackageMCM, 16-pin

Package (mm)5 x 5 x 1.3

Features

Wide instantaneous signal bandwidth: 100 MHz
High-efficiency: PAE = 15% @ +23 dBm
High linearity: +23 dBm with < -50 dBc ACLR with pre-distortion (100 MHz LTE, 8.5 dB PAR signal)
High gain: 36 dB
Excellent input and output return loss: to 50 Ω system
Integrated active bias: performance compensated over temp
Integrated enable On/Off function: PAEN = 1.7 to 2.5 V
Single supply voltage: 5.0 V
Pin-to-pin compatible PA family supporting major 3GPP bands
Compact (16-pin, 5 x 5 x 1.3 mm) package (MSL3, 260 °C per JEDEC J-STD-020)
