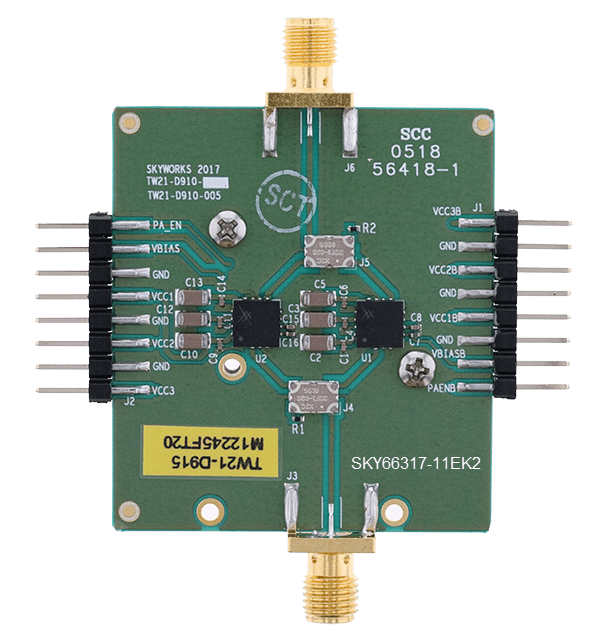

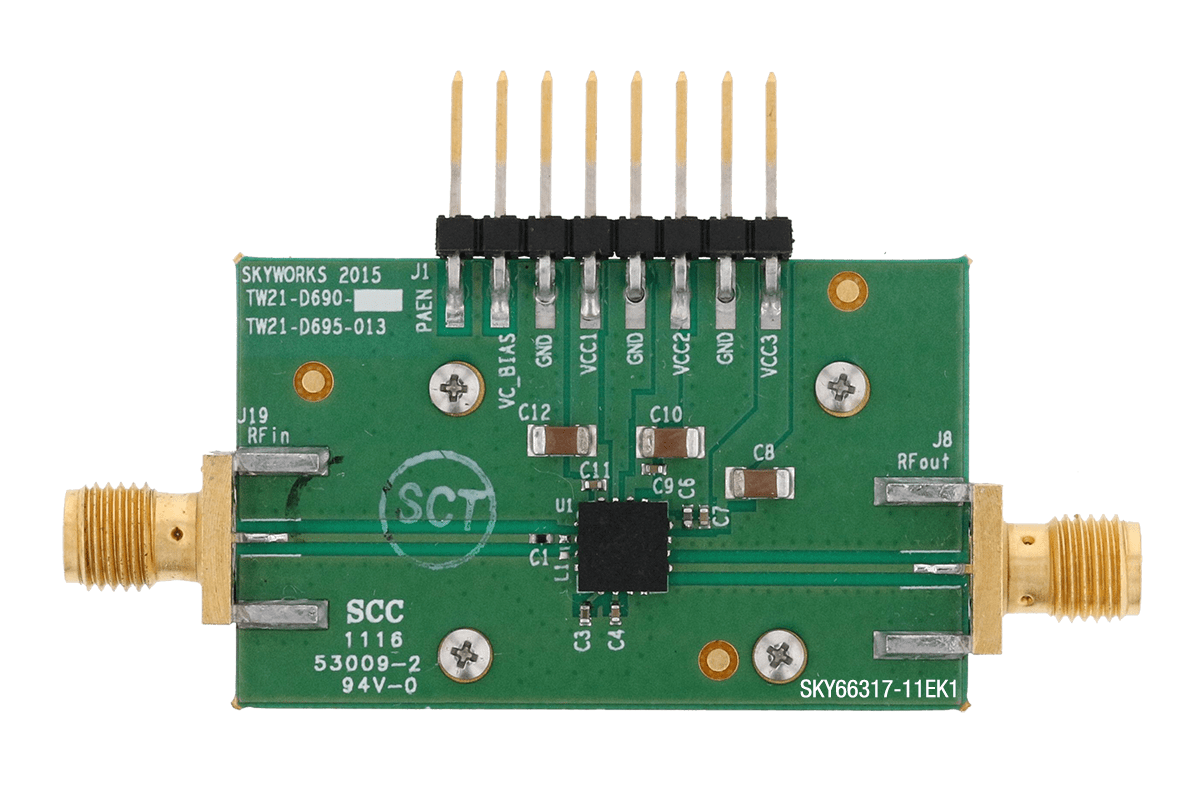

SKY66317-11

2496 to 2690 MHz Wide Instantaneous Bandwidth High-Efficiency Power Amplifier

The SKY66317-11 is a highly efficient, wide instantaneous bandwidth, fully input/output matched power amplifier (PA) with high gain and linearity. The compact 5 × 5 mm PA is designed for FDD and TDD 4G LTE and 5G systems operating from 2496 to 2690 MHz. The active biasing circuitry is integrated to compensate PA performance over temperature, voltage, and process variation.

The SKY66317-11 is part of high-efficiency, pin-to-pin compatible PA family supporting major 3GPP bands.

Data Sheets Receive a sample

Buy Now Talk to Sales ECAD Model

Specifications

Product LifecycleIn Production

Frequency Range (GHz)2.496-2.690

Test Frequency (GHz)TBD

Gain Typ. (dB)TBD

OIP3 (dBm)TBD

P_{1 dB} (dBm)35

Power Added Efficiency (%)33

Linear Output Power (dBm) TBD

V_CC (V)5

Quiescent Current Typ. (mA)90

PackageMCM, 16-pin

Package (mm)5 x 5 x 1.3

Features

Wide instantaneous signal bandwidth: 100 MHz
High-efficiency: PAE = 33% @ +28 dBm
High linearity: +28 dBm with < -50 dBc ACLR with pre-distortion (100 MHz LTE, 8.5 dB PAR signal)
High gain: 38 dB
Excellent input and output return loss: to 50 ohm system
Integrated active bias: performance compensated over temp
Integrated enable On/Off function: PAEN = 1.7 to 2.5 V
Single supply voltage: 5.0 V
Pin-to-pin compatible PA family supporting major 3GPP bands
Compact (16-pin, 5 x 5 x 1.3 mm) package (MSL3, 260 °C per JEDEC J-STD-020)
